EMPI 30 PICT 1
	Parts Availability & Links when available 8 Float 43-6822 15 Main Jet 43-5112-7 thru 43-5170-7 23 Pilot / Idle Jet 43-5045-7 thru 43-5070-7 24 Choke Element 98-1305-B 37 Carburetor Base Gasket 3254 Carb Rebuild Kits : Basic - 2500 Deluxe / Overhaul - 2505
EMPI 32/36F - WEBER 32/36 DGV / WEBER 32/36 DGEV / WEBER 32/36 DGAV
	Parts Availability & Links when available : 4 Carburetor Top Cover Gasket 3249 5 Air Correction Jet 43-5426 thru 43-5444 7 Emulsion Tube 43-5682 thru 43-5685 9 Accelerator Pump Jet 43-5391 thru 43-5398 11 Needle Valve 43-5371 thru 43-5374 14 Idle Jet 43-5501 thru 43-5508 25 Throttle Lever Locking Tab 43-6414 26 Throttle Lever Nut 43-6413 54 Choke Element 43-0620 73 Accelerator Pump Diaphragm 43-5726 80 Main Jet 43-5322 thru 43-5342 98 Base Gasket 3409 / 3411 Carb Rebuild Kits : Basic - 2361 Deluxe / Overhaul - 43-5804
EMPI 34 EPC / Weber 34 ICT Carb
	Parts Availability & Links when available : 7 Float 43-6820 9 Main Jet 43-5322 thru 43-5342 14 Accelerator Pump Diaphragm 43-5728 21 Idle Jet 43-5519 thru 43-5549 33 Throttle Shaft Locking Tab 43-6414 34 Throttle Shaft Nut 43-6413 40 Emulsion Tube 43-5682 thru 43-5685 41 Air Correction Jet 43-5426 thru 43-5444 45 Base Gasket 3316 Carb Rebuild Kits : Basic - 2365 Deluxe / Overhaul - 43-5801
EMPI 34 PICT 3
	Parts Availability & Links when available : 8 Float 43-6824 13 Main Jet 43-5112-7 thru 43-5170-7 16 Bypass Air Cut-Off Valve 98-1297-B 31 Pilot / Idel Jet 43-5045-7 thru 43-5070-7 37 Choke Element 98-1305-B 51 Carburetor Base Gasket 3253 Carb Rebuild Kits : Basic - 2500 Deluxe / Overhaul - 2505
EMPI 38 E GAS EPC / WEBER 38 DGS / WEBER 38 DGAS / WEBER 38 DGES
	Parts Availability & Links when available : 12 Carburetor Top Cover Gasket 3248 14 Needle Valve 43-5371 thru 43-5374 15 Float 43-6550 19 Main Jet 43-5322 thru 43-5342 32 Accelerator Pump Diaph. 43-5727 34A Idle Jet - Primary 43-5519 thru 43-5549 34B Idle Jet - Secondary 43-5501 thru 43-5508 50 Choke Element 43-5351 78 Throttle Lever Locking Tab 43-6414 79 Throttle Lever Nut 43-6413 89 Emulsion Tube 43-5682 thru 43-5685 94 Air Correction Jet 43-5426 thru 43-5444 96 Accelerator Pump Jet 43-5391 thru 43-5398 98 Auxiliary Venturi 43-5687 99 Base Gasket 3411 Carb Rebuild Kits : Basic - 2361 Deluxe / Overhaul - 43-5802

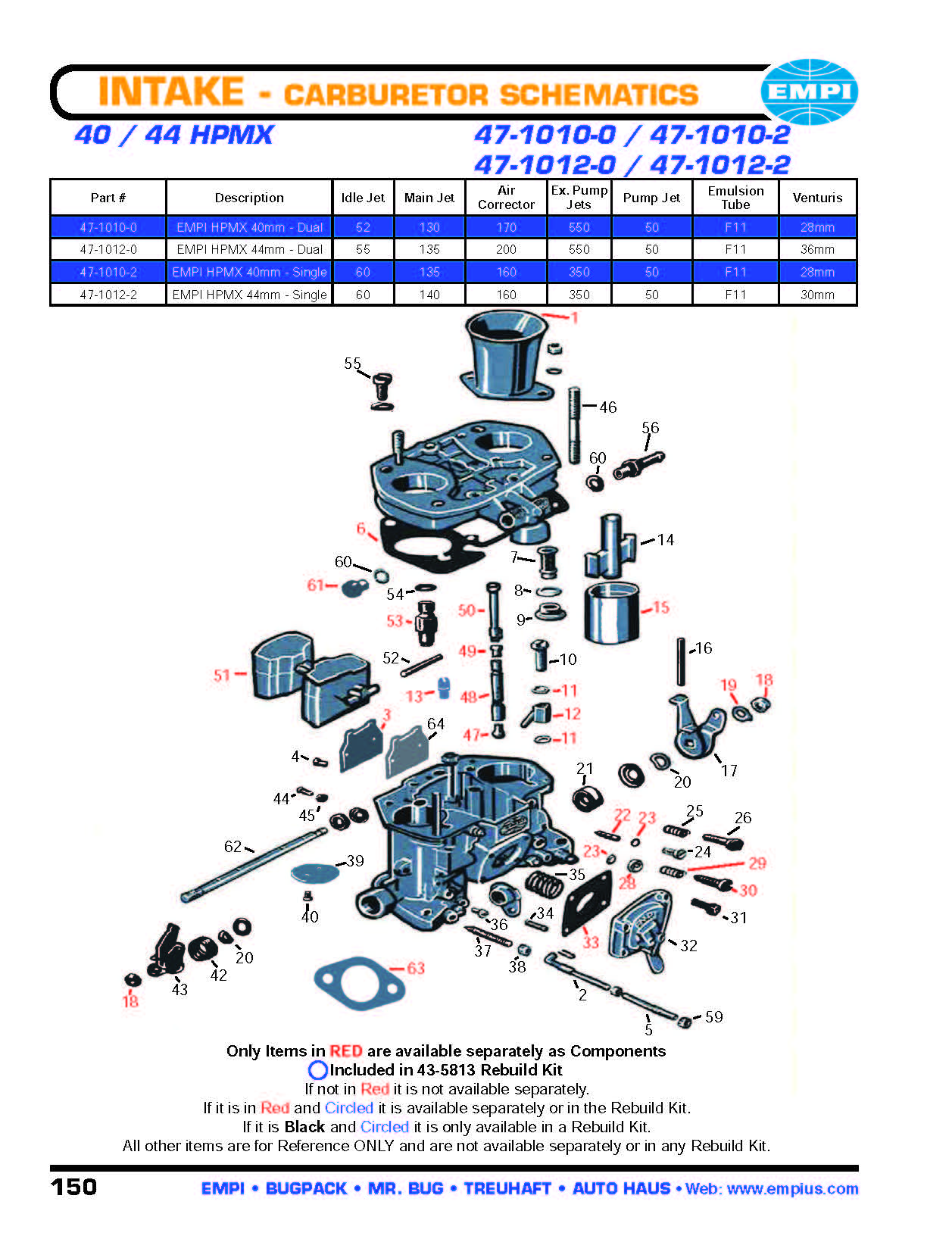

EMPI 40 HPMX / EMPI 44 HPMX / WEBER 40 IDF / WEBER 44 IDF
	Parts Availability & Links when available : 1 Velocity Stack/Air Horn 43-6050-2 3 Enrichment Block-Off Plate 43-5709 6 Carburetor Main Gasket 3252 11 Pump Jet Washer 43-6410 12 Accelerator Pump Jet 43-5388 thru 43-5390 13 Pump Exhaust Valve 43-5650 thru 43-6400 15 Venturi/Choke 43-5606 thru 43-5611 18 Throttle Shaft Nut 43-6413 19 Throttle Shaft Locking Tab 43-6414 22 Idle Jet 43-5510 thru 43-5518 23 Idle Jet O' Ring 43-6417 28 Mixture Screw O' Ring Cap 43-6422 29 Mixture Screw Spring 43-6423 30 Mixture Screw 43-6424 33 Accelerator Pump Diaphragm 43-5725 47 Main Jet 43-5301 thru 43-5321 48 Emulsion Tube 43-5670 thru 43-5681 49 Air Correction Jet 43-5401 thru 43-5425 50 Emulsion Tube Holder 43-6440 51 Float 43-6441 53 Needle Valve 43-5366 thru 43-5368 61 Threaded Cap/Fuel Inlet 43-6552 63 Base Gasket 3396 Carb Rebuild Kits : Basic - 2362 Deluxe / Overhaul - 43-5813
EMPI 40K / Kadron Carb / Brosol / Solex 40-44
	Parts Availability & Links when available : 2 Venturi 43-4407 thru 43-4409 7 Idle Jet 43-5045-7 thru 43-5070-7 8 Main Jet 43-5112-7 thru 43-5170-7 15 Needle Valve & Gasket 43-5021 16 Float Assembly 43-4403 19 Throttle Body 43-4405 Carb Rebuild Kits : Basic - 2301 Deluxe / Overhaul - 2507

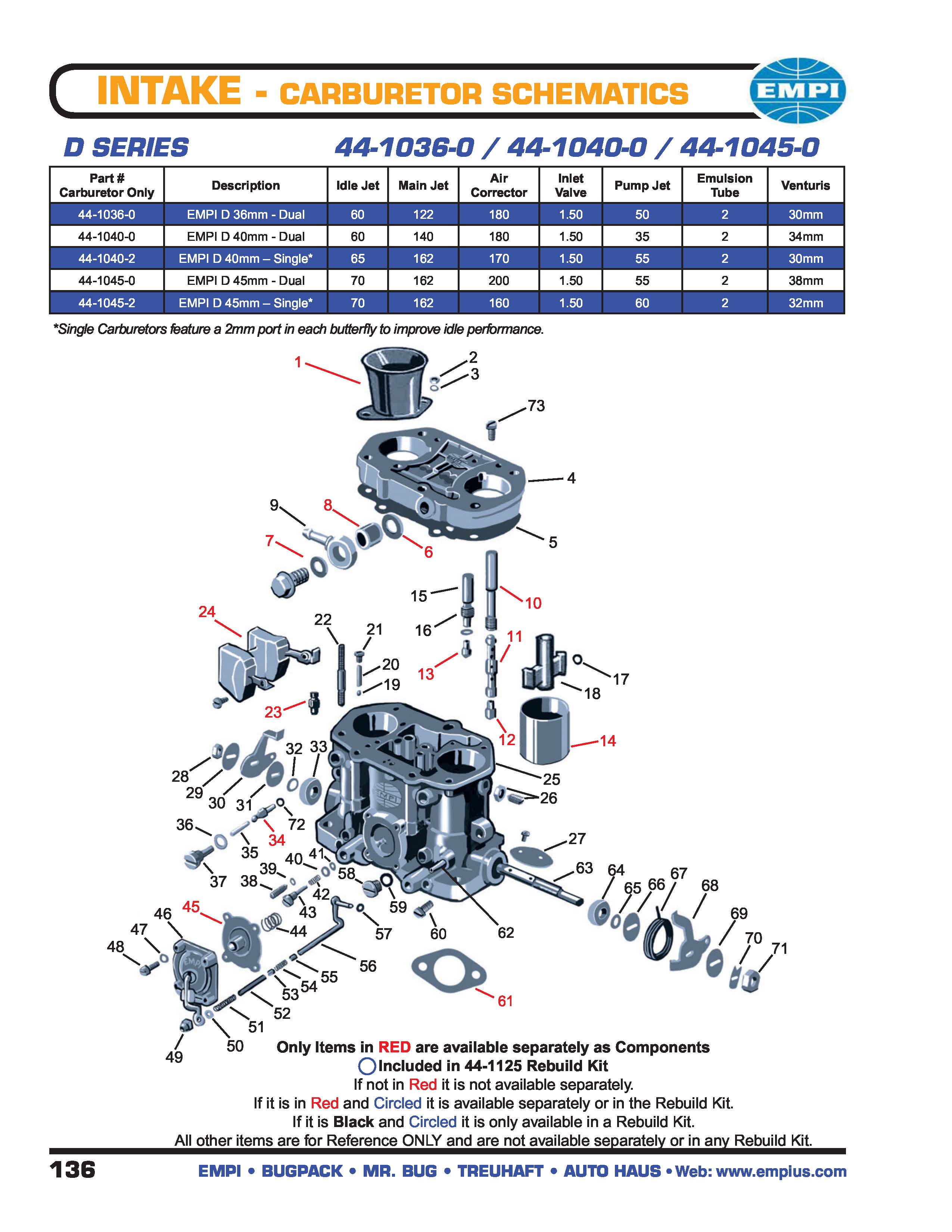

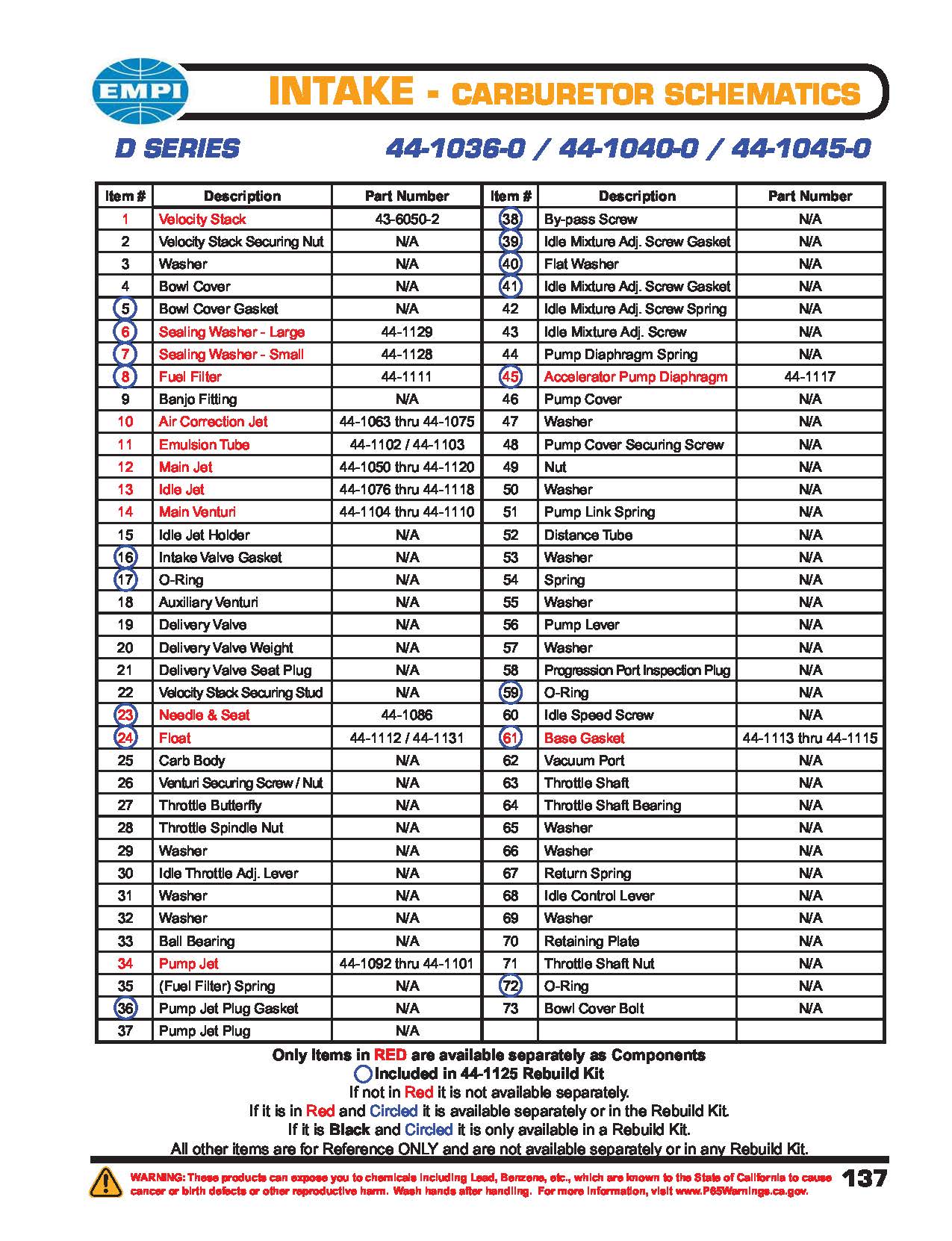

EMPI D Series Carb & Original Dellorto Carbs - 36-40-45
	Parts Availability & Links when available : 1 - VELOCITY STACK - 43-6050-2 6 - SEALING WASHER - LARGE - 44-1129 7 - SEALING WASHER - SMALL - 44-1128 10 - AIR CORRECTION JETS - 44-1063 - 44-1075 11 - EMULSION TUBE - 44-1102 - 44-1103 12 - MAIN JET - 44-1104 - 44-1110 13 - IDLE JET - 44-1076 - 44-1118 14 - MAIN VENTURI - 44-1104 - 44-1110 23 - NEEDLE & SEAT - 44-1086 24 - FLOAT - 44-1112 - 44-1131 34 - PUMP JET - 44-1092 - 44-1101 45 - ACCELERATOR PUMP DIAPHRAM - 44-1117 61 - BASE GASKET - 44-1113 - 44-1115 Carb Rebuild Kits : Basic - 2364 Deluxe / Overhall - 44-1125
EMPI EPC 48 / EMPI EPC 51 / WEBER 48
	Parts Availability & Links when available : 1 Velocity Stack/Air Horn 43-6052 6 Pump Spring 3252 11 Pump Exhaust Valve 43-5650 thru 43-6400 12 Needle Valve - 3.0 43-5343 14 Top Cover Gasket 43-5349 15 Float 43-6973 18 Auxiliary Venturi 43-5353 19 Venturi/Choke 43-5618 thru 43-5619 20 Idle Mixture Screw 43-5347 21 Idle Mixture Spring 43-5347 25 Throttle Shaft Nut 43-6413 26 Throttle Shaft Locking Tab 43-6414 38 Throttle Stop Screw & Spring 43-5346 45 Main Jet 43-5301 thru 43-5321 46 Emulsion Tube 43-5670 thru 43-5681 47 Air Correction Jet 43-5401 thru 43-5425 49 Idle Jet 43-5536 thru 43-5543 53 Fuel Banjo 43-5355 59 Velocity Stack/Air Horn Tab 43-5345 60 Bolt/Washer, Velocity Stack 43-5344 64 Main Jet Screen 43-5348 67 Base Gasket 3396 Carb Rebuild Kits : Basic - Not Available Deluxe / Overhaul - 43-5815
VW Bug / Bus Carburetor Help Page
	This page will have detailed diagram & availability of your carb parts. Click the links to see more information on the carb you are working with. - EMPI 32/36F - WEBER 32/36 DGV / WEBER 32/36 DGEV / WEBER 32/36 DGAV - EMPI 40 HPMX / 44 HPMX / WEBER 40 IDF / WEBER 44 IDF - EMPI 38 E GAS / WEBER 38 DGS / WEBER 38 DGAS / WEBER 38 DGES - EMPI 30 PICT 1 - EMPI 34 PICT 3 - EMPI 34 EPC / WEBER 34 ICT - EMPI EPC 48 / EPC 51 / WEBER 48 - EMPI 40K / Kadron Carb / Brosol / Solex 40-44 - EMPI D Series Carb & Dellorto - 36 / 40 / 45 mm
